Description
●Measuring ranges:
DC voltage: 6 V - 60 V - 600 V - 1000 V
AC voltage: 6 V - 60 V - 600 V - 750 V
DC current: 60 mA - 600 mA - 6 A - 20 A
AC current: 60 mA - 600 mA - 6 A - 20 A
resistance: 600 Ohm - 6 KOhm - 600 KOhm - 6 MOhm - 60 MOhm
continuity: buzzer sounds under 20 Ohm
diode: test current approx. 0.8 mA
capacity: 40 nF to 4000 uF
temperature: -20 to 400 °C
frequency: 10 Hz to 10 MHz
duty cycle: 0.5% to 99.9%
drive speed: 120 to 20,000 rpm
dwell: 0° - 90° / 0° - 72° / 0° - 60° / 0° - 45°
pulse width: 0.5 ms to 20 ms

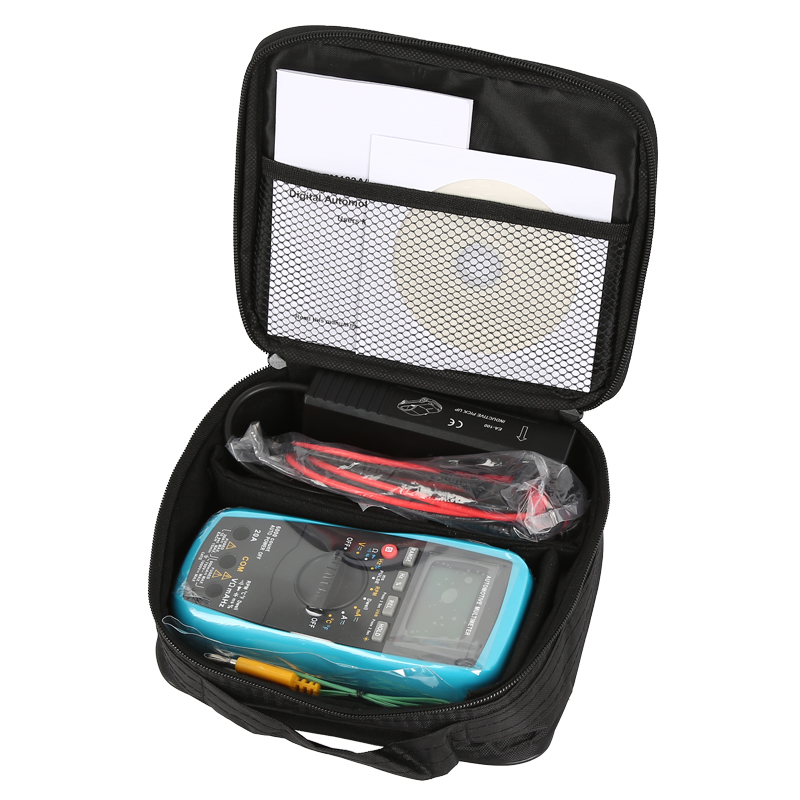

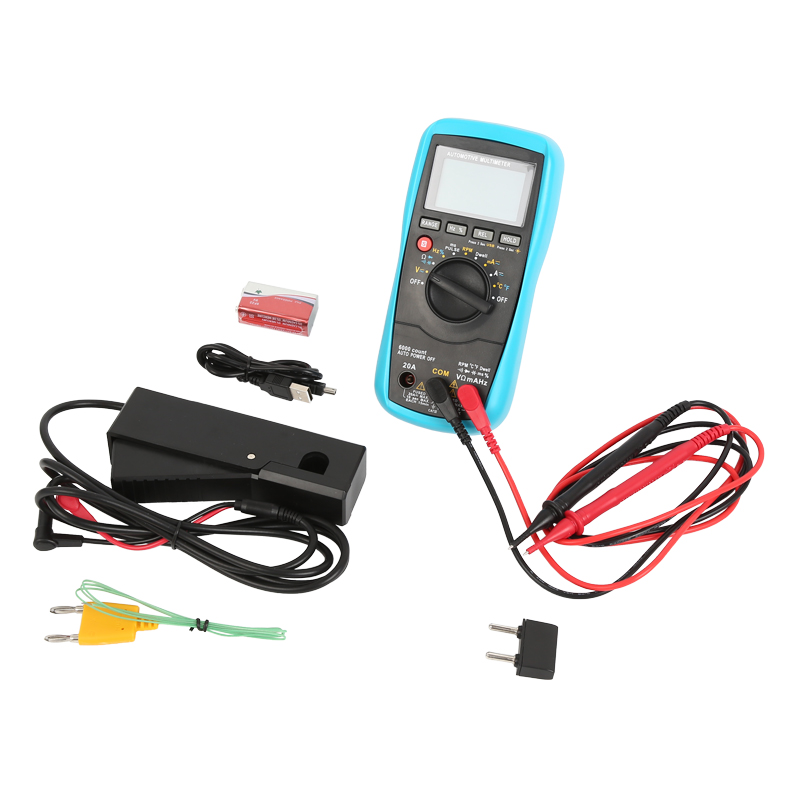

●Scope of delivery:
temperature probe
condenser adaptor
inductive pick up
2 measuring cables
USB cable
CD with driver/software
pouch and 9-V battery
DC voltage: 6 V - 60 V - 600 V - 1000 V
AC voltage: 6 V - 60 V - 600 V - 750 V
DC current: 60 mA - 600 mA - 6 A - 20 A
AC current: 60 mA - 600 mA - 6 A - 20 A
resistance: 600 Ohm - 6 KOhm - 600 KOhm - 6 MOhm - 60 MOhm
continuity: buzzer sounds under 20 Ohm
diode: test current approx. 0.8 mA
capacity: 40 nF to 4000 uF
temperature: -20 to 400 °C
frequency: 10 Hz to 10 MHz
duty cycle: 0.5% to 99.9%
drive speed: 120 to 20,000 rpm
dwell: 0° - 90° / 0° - 72° / 0° - 60° / 0° - 45°
pulse width: 0.5 ms to 20 ms
●Scope of delivery:
temperature probe
condenser adaptor
inductive pick up
2 measuring cables
USB cable
CD with driver/software
pouch and 9-V battery
