Description

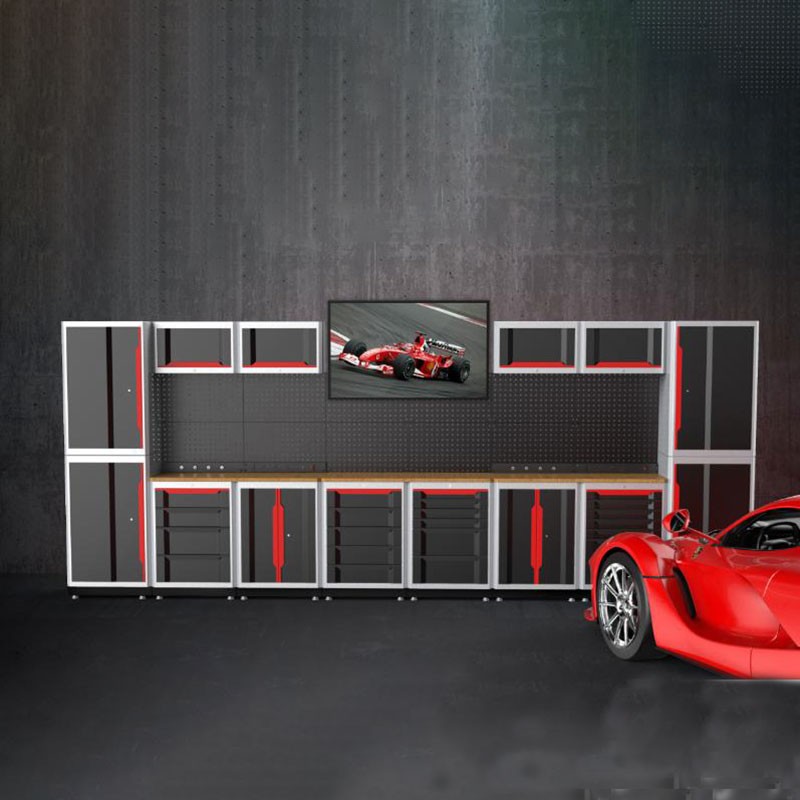

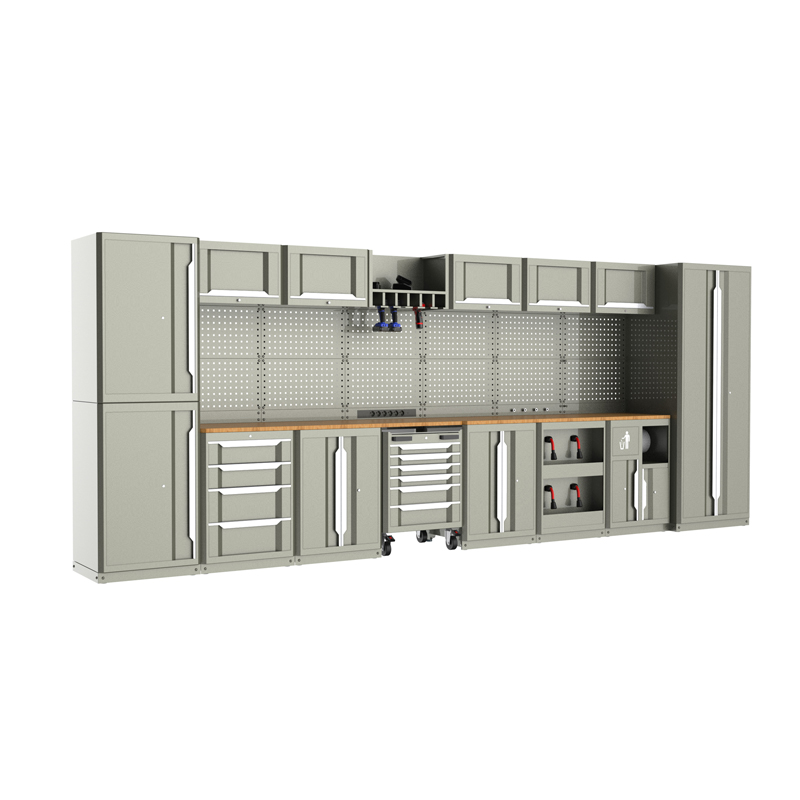

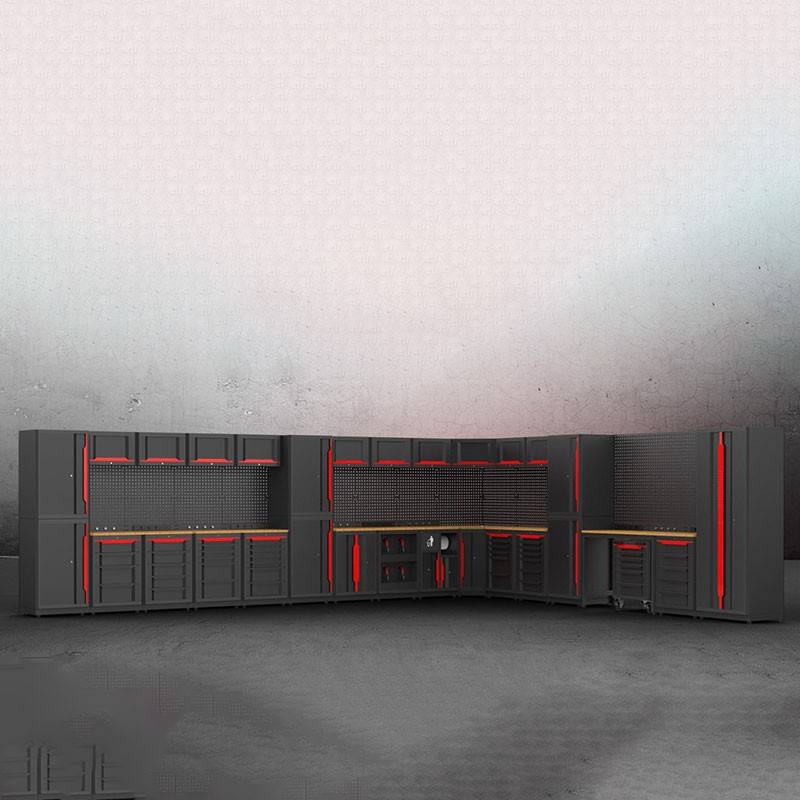

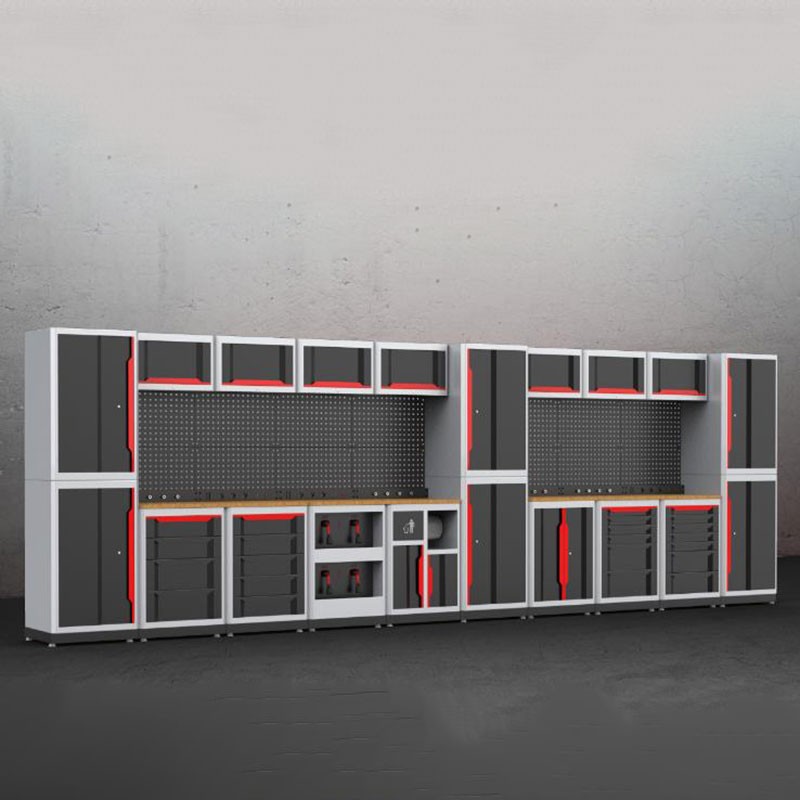

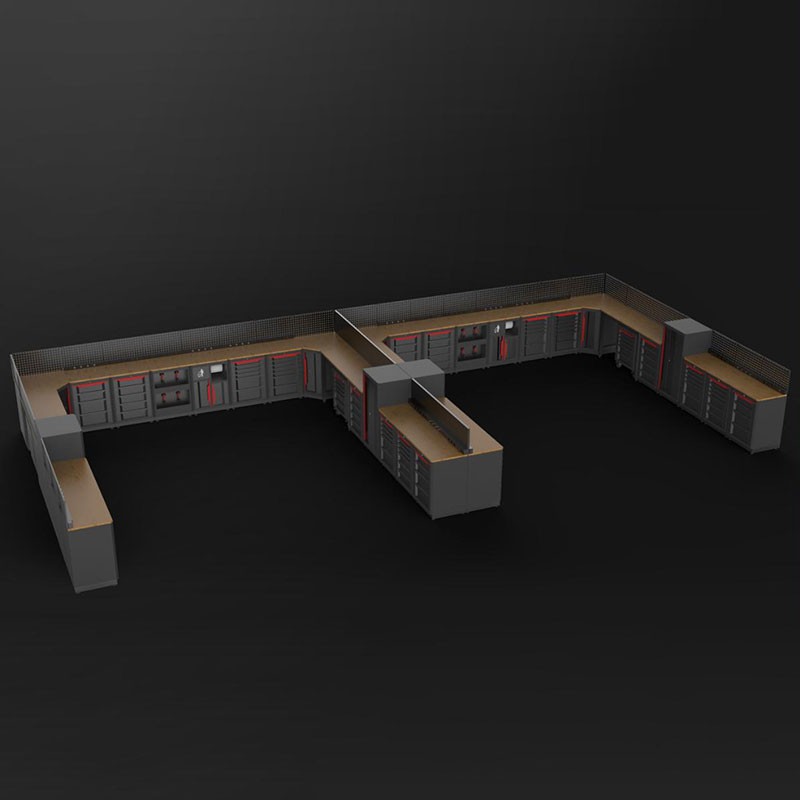

The tool cabinet group can be customized according to your needs！
WT01Y3000 1-door wall cabinet
WT01Y3001 2-door wall cabinet（Electric tool rack）
WT01Y3002 2-door Tool cabinet
WT01Y3003 Trash bin with paper holder
WT01Y3004 Mounting the base cabinet around the hanger
WT01Y3005 4-door cabinet
WT01Y3006 5-door cabinet
WT01Y3007 6-door cabinet
WT01Y3008 7-door cabinet
WT01Y3009 8-door cabinet
WT01Y3010 9-door cabinet
WT01Y3011 6-drawer cabinet
WT01Y3012 Corner wall cabinet
WT01Y3013 Corner bottom cabinet
WT01Y3014 1 door standing cabinet
WT01Y3015 1 door standing cabinet
WT01Y3016 2 door standing cabinet
WT01Y3017 Rubber wood board
WT01Y3018 Rubber wood board

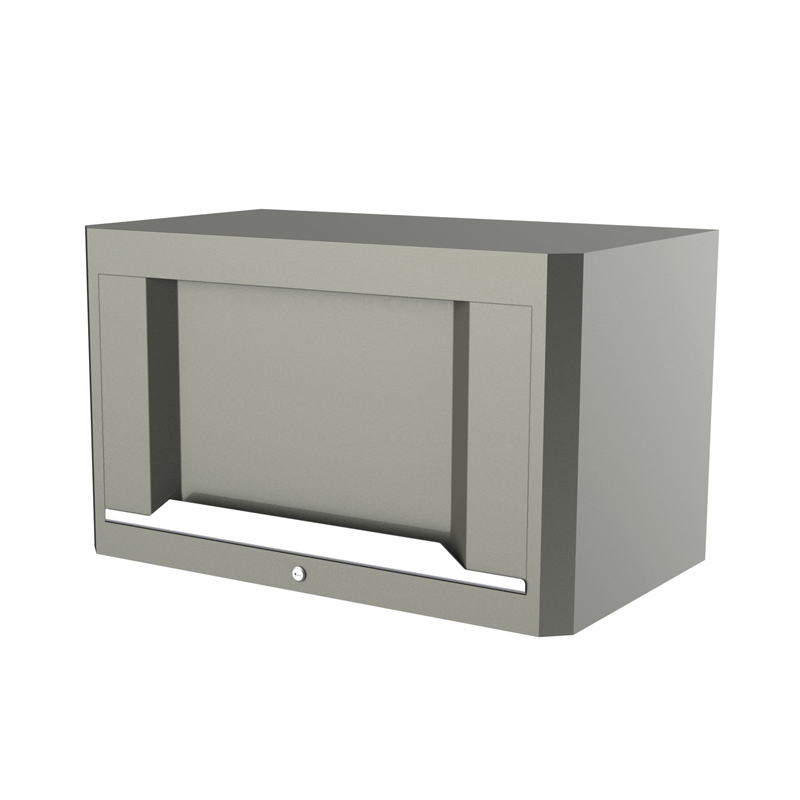

WT01Y3000 1-door wall cabinet
1、size:618x360x372mm
2、 0.8mm industrial cold rolled steel
3、Black & red grain powder coating finish
4、2pcs of gas struts，2pcs key
5、Packing: 5ply brown carton+PE bag+Foam

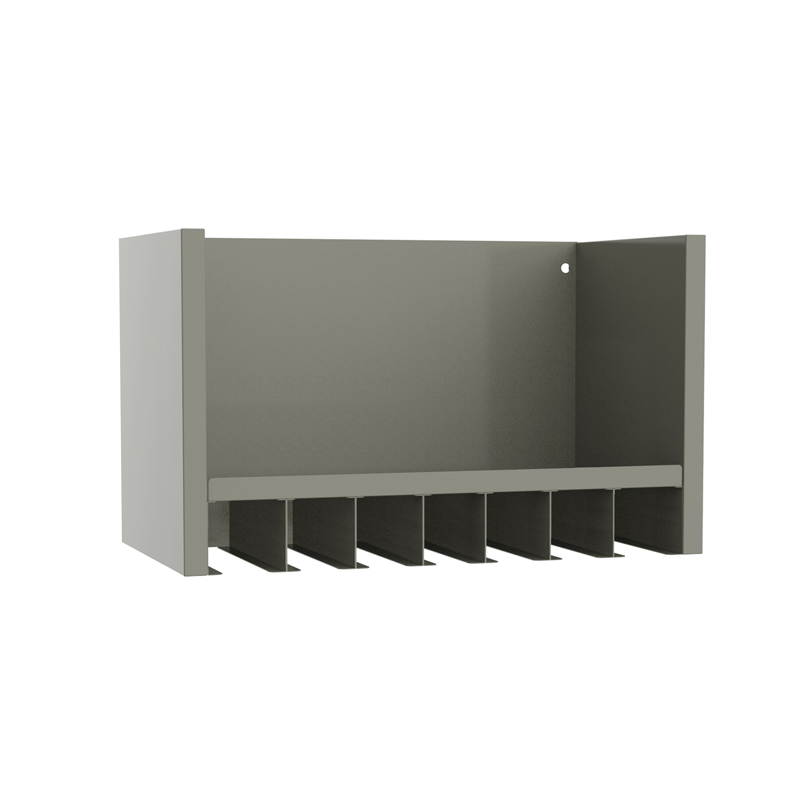

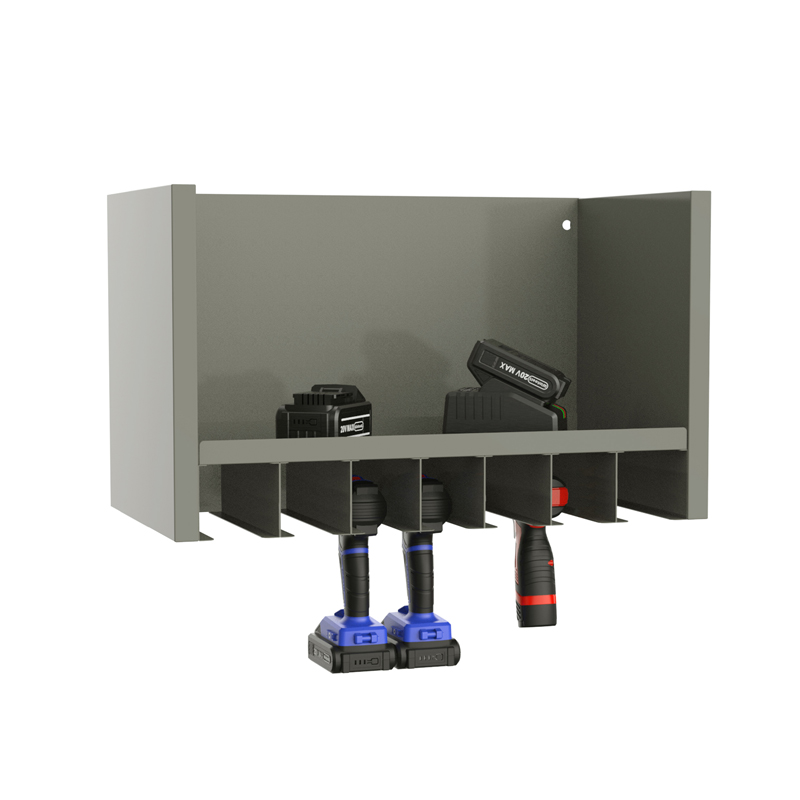

WT01Y9794 Electric tool hanger
WT01Y9794 Electric tool hanger
1、size:618x345x372mm
2、 0.8mm industrial cold rolled steel
3、Black & red grain powder coating finish
4、2pcs of gas struts，2pcs key
5、Packing: 5ply brown carton+PE bag

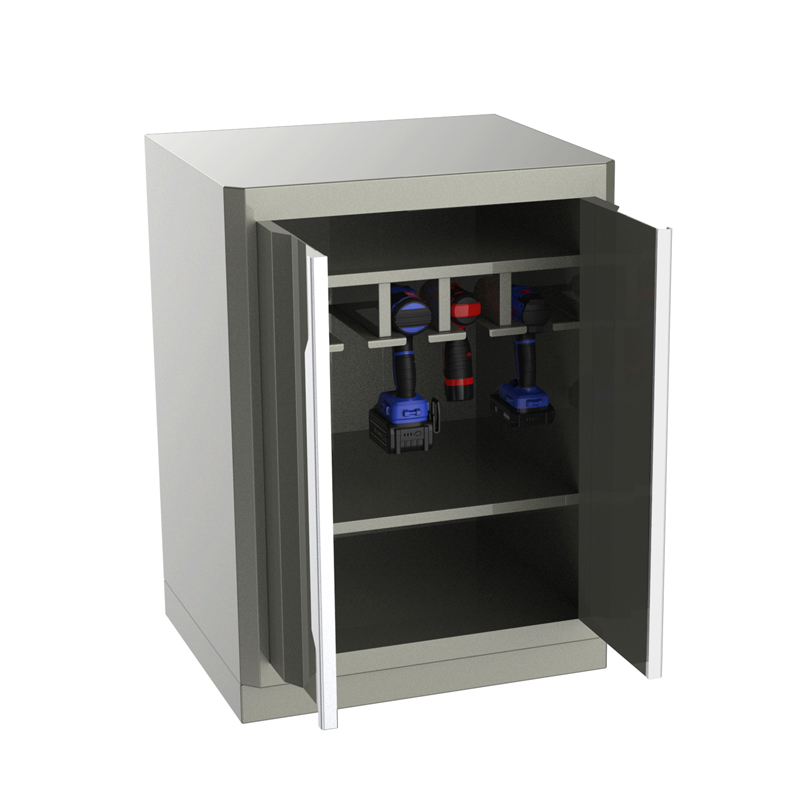

WT01Y3001 2-door wall cabinet（Electric tool rack）
1、size::618x530x776/836mm
2、0.8mm industrial cold rolled steel
3、The bottom cabinet contains electric tool rack and 1PCS laminate
4、Black & red grain powder coating finish
5、Central locking system with cylinder lock 2PCS key
5. 4pcs of adjustable feet
6、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

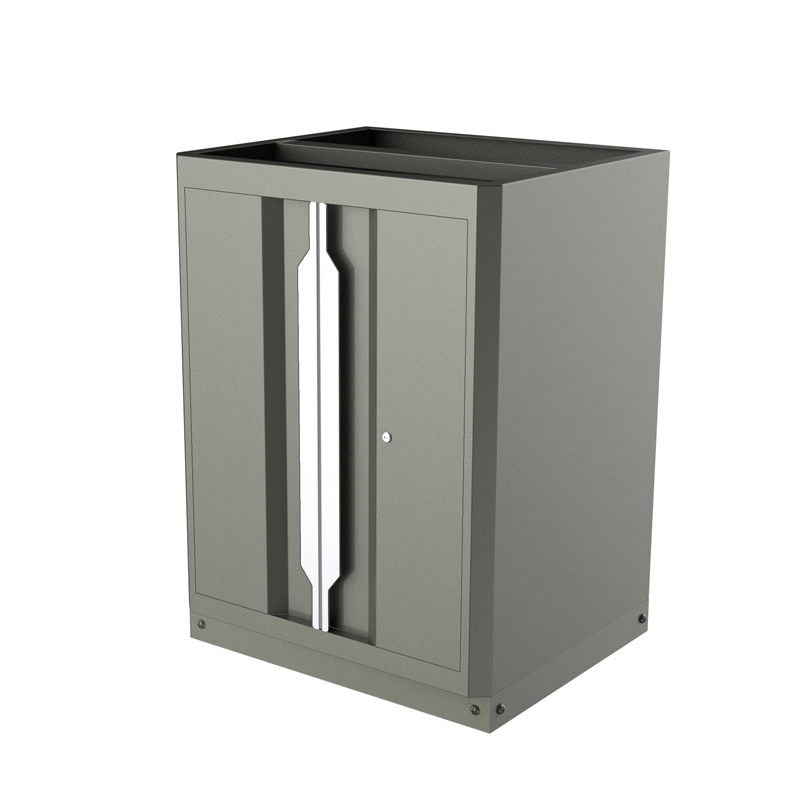

WT01Y3002 2-door Tool cabinet
1、size::618x530x776/836mm
2、0.8mm industrial cold rolled steel
3、 Black & red grain powder coating finish
4、Central locking system with cylinder lock 2PCS key
5、4pcs of adjustable feet
6、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

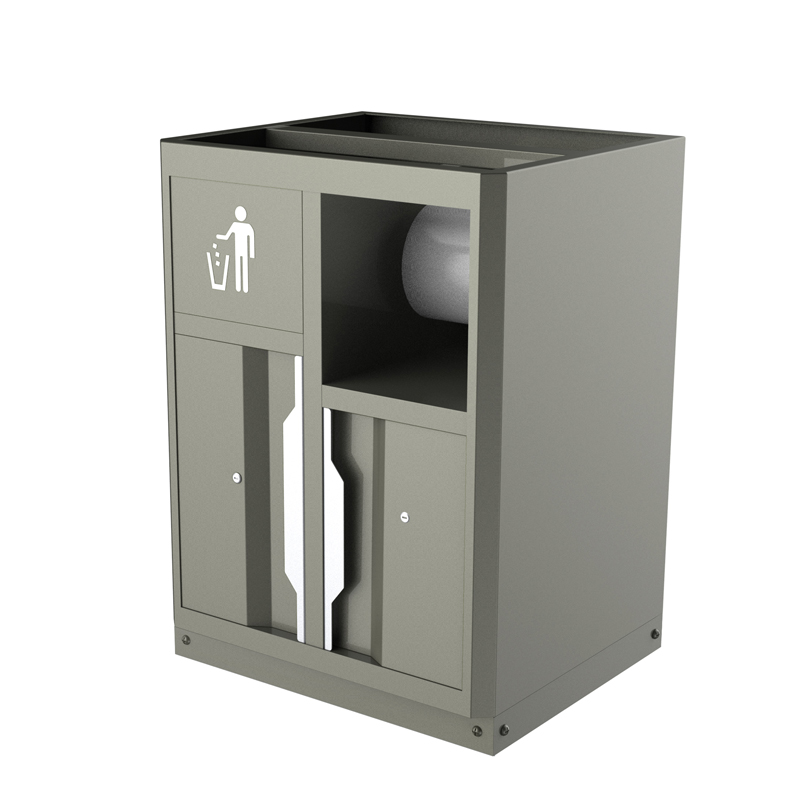

WT01Y3003 Trash bin with paper holder
1、size:618x530x776/836mm
2、0.8mm industrial cold rolled steel
3、Black & red grain powder coating finish
4、1 sets of heavy duty ball-bearing slides
5、Central locking system with cylinder lock
6、4pcs of adjustable feet
7、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

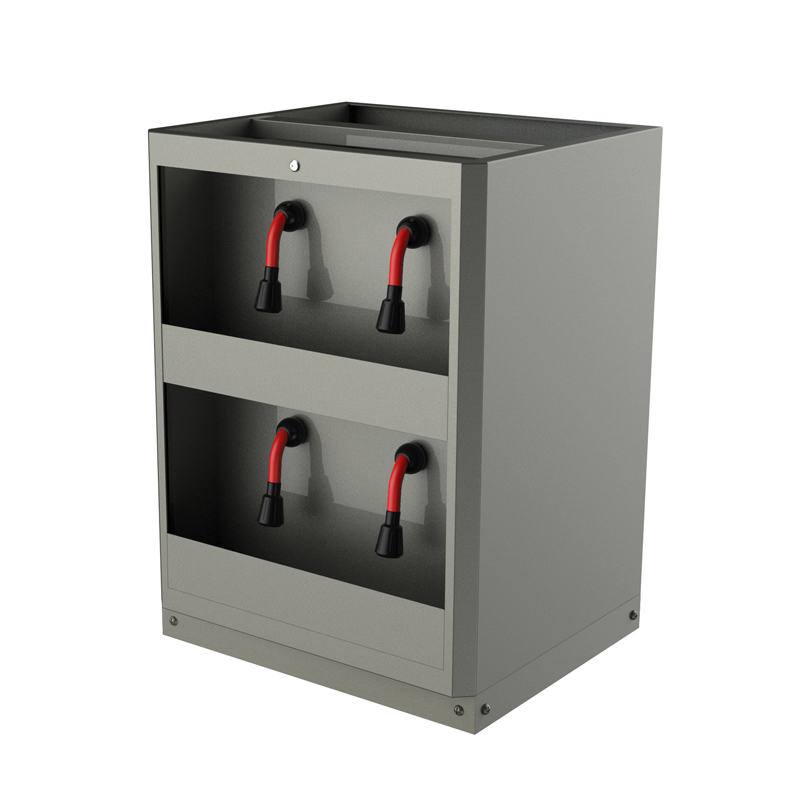

WT01Y3004 Mounting the base cabinet around the hanger
1、size:618x530x776/836mm
2、0.8mm industrial cold rolled steel
3、Black & red grain powder coating finish
4、Central locking system with cylinder lock
5、4pcs of adjustable feet
6、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

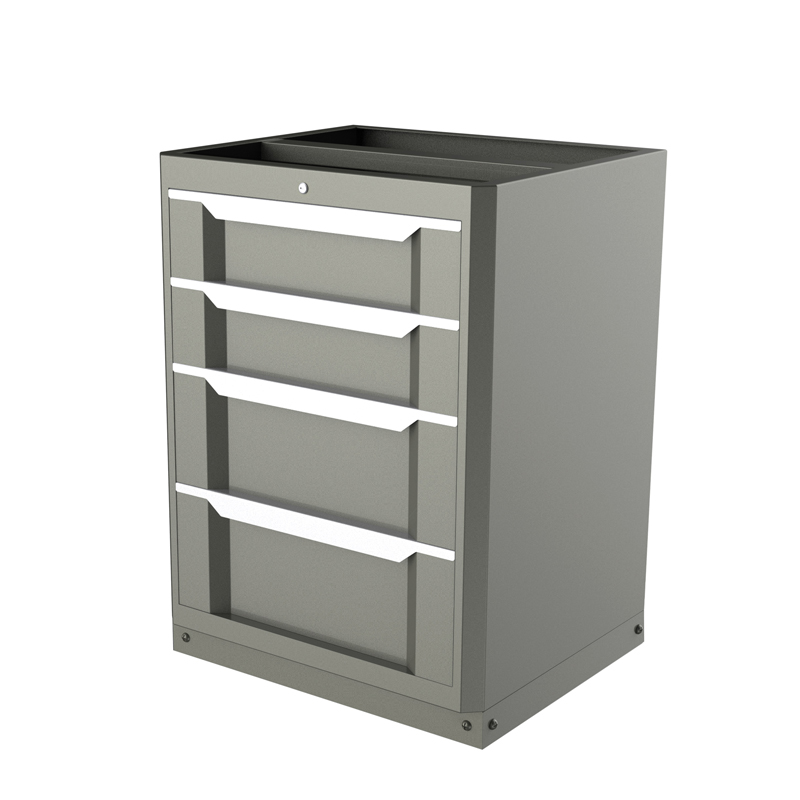

WT01Y3005 4-door cabinet
1、size::618x530x776/836mm
2、Drawer size：
2-500*398*125MM,2-500*398*190mm
3、Drawer load：35-45KG
4、0.8mm industrial cold rolled steel
5. Black & red grain powder coating finish
6. 4pcs of heavy duty ball bearing drawers with auto return
7. Central locking system with cylinder lock 2PCS key
8. 4pcs of adjustable feet
9. Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

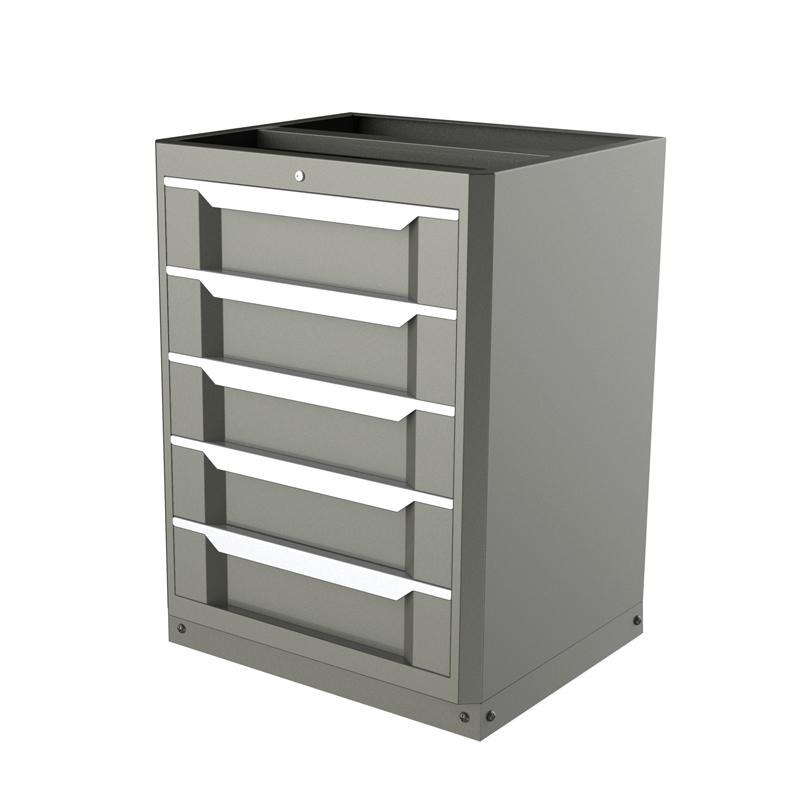

WT01Y3006 5-door cabinet
1、size::618x530x776/836mm
2、Drawer size：5-500*398*125mm
3、Drawer load：35-45KG
4、0.8mm industrial cold rolled steel
5. Black & red grain powder coating finish
6. 5pcs of heavy duty ball bearing drawers with auto return
7、 Central locking system with cylinder lock 2PCS key
8、4pcs of adjustable feet
9、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

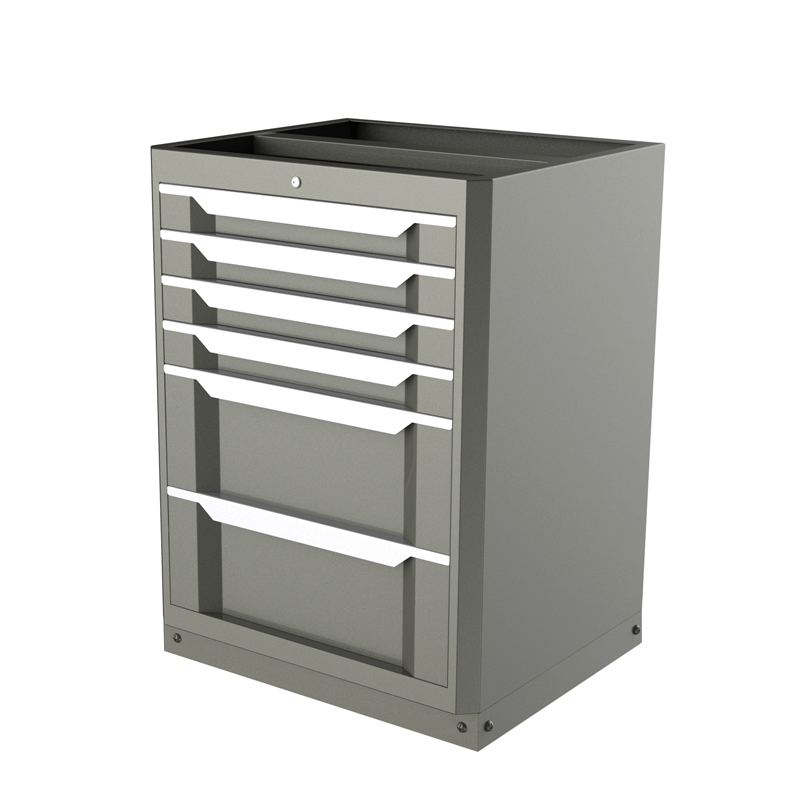

WT01Y3007 6-door cabinet
1、size::618x530x776/836mm
2、Drawer size：4-500*398*74mm,2-500*398*164mm
3、Drawer load：35-45KG
4、0.8mm industrial cold rolled steel
5、Black & red grain powder coating finish
6、6pcs of heavy duty ball bearing drawers with auto return
7、Central locking system with cylinder lock 2PCS key
8、4pcs of adjustable feet
9、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

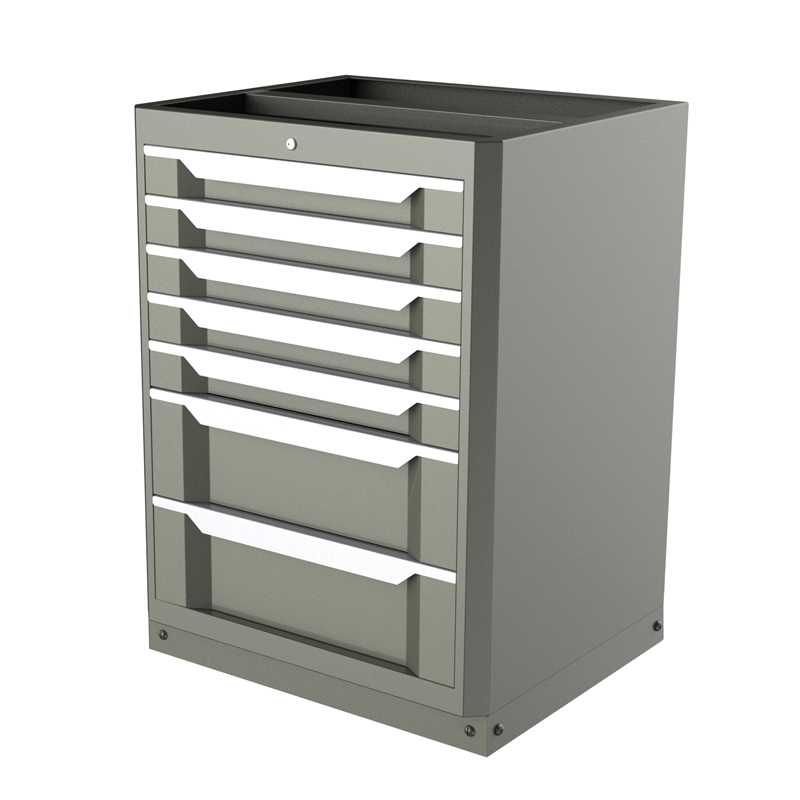

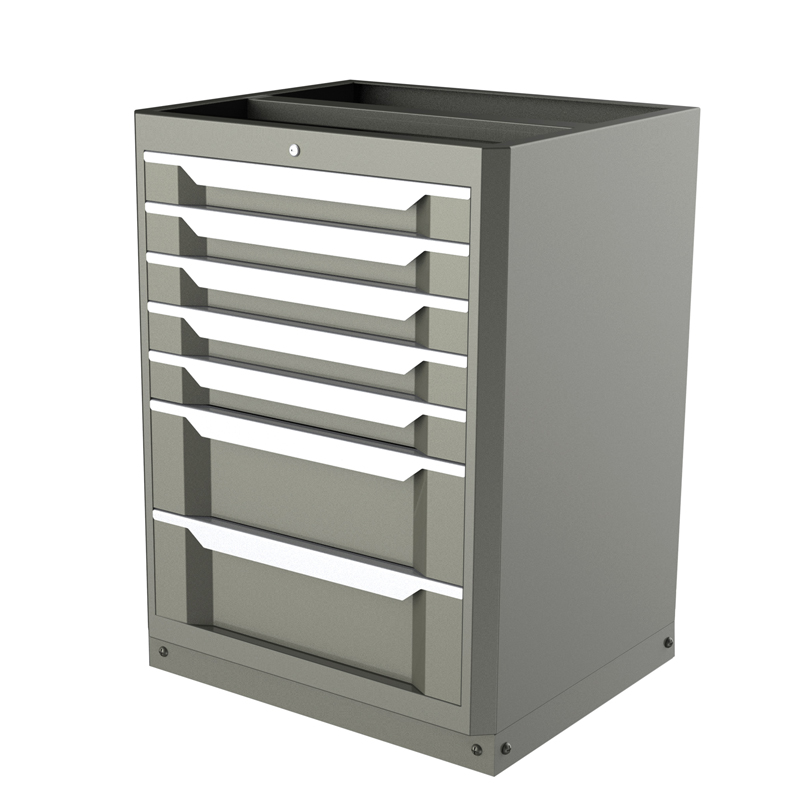

WT01Y3008 7-door cabinet
1、size::618x530x776/836mm
2、Drawer size：5-500*398*74mm,2-500-398*125mm
3、Drawer load：35-45KG
4、0.8mm industrial cold rolled steel
5、 Black & red grain powder coating finish
6、7pcs of heavy duty ball bearing drawers with auto return
7、Central locking system with cylinder lock 2PCS key
8、4pcs of adjustable feet
9、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

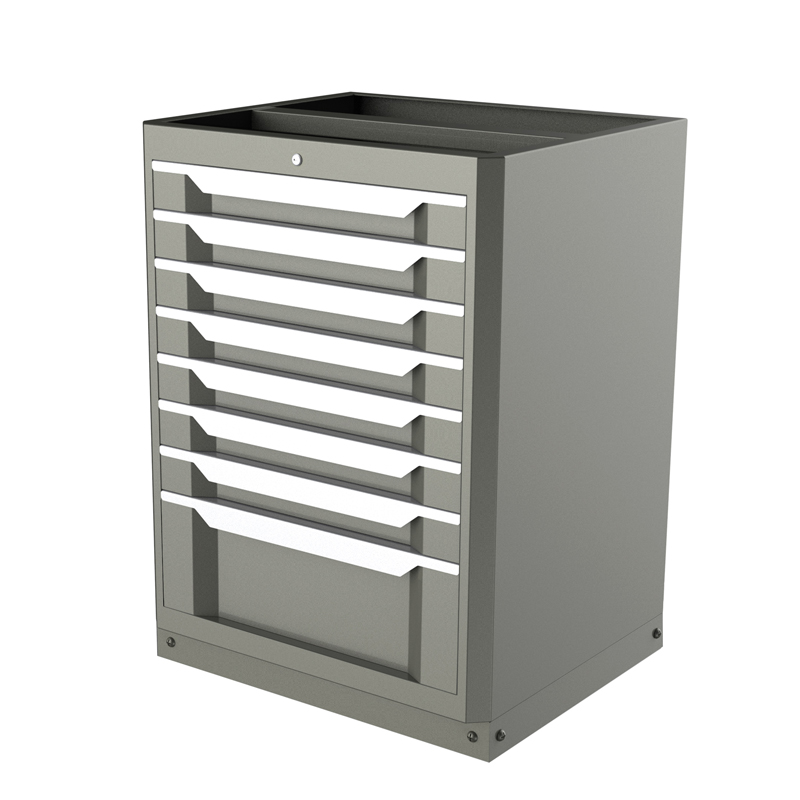

WT01Y3009 8-door cabinet
1、size::618x530x776/836mm
2、Drawer size：7-500*398*71mm,1-500*398*125mm
3、Drawer load：35-45KG
4、0.8mm industrial cold rolled steel
5、Black & red grain powder coating finish
6、8pcs of heavy duty ball bearing drawers with auto return
7、Central locking system with cylinder lock 2PCS key
8、4pcs of adjustable feet
9、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard
WT01Y3010 9-door cabinet
1、size::618x530x776/836mm
2、Drawer size：9-500*398*68.5mm
3、Drawer load：35-45KG
4、0.8mm industrial cold rolled steel
5、Black & red grain powder coating finish
6、9pcs of heavy duty ball bearing drawers with auto return
7、Central locking system with cylinder lock 2PCS key
8、4pcs of adjustable feet
9、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

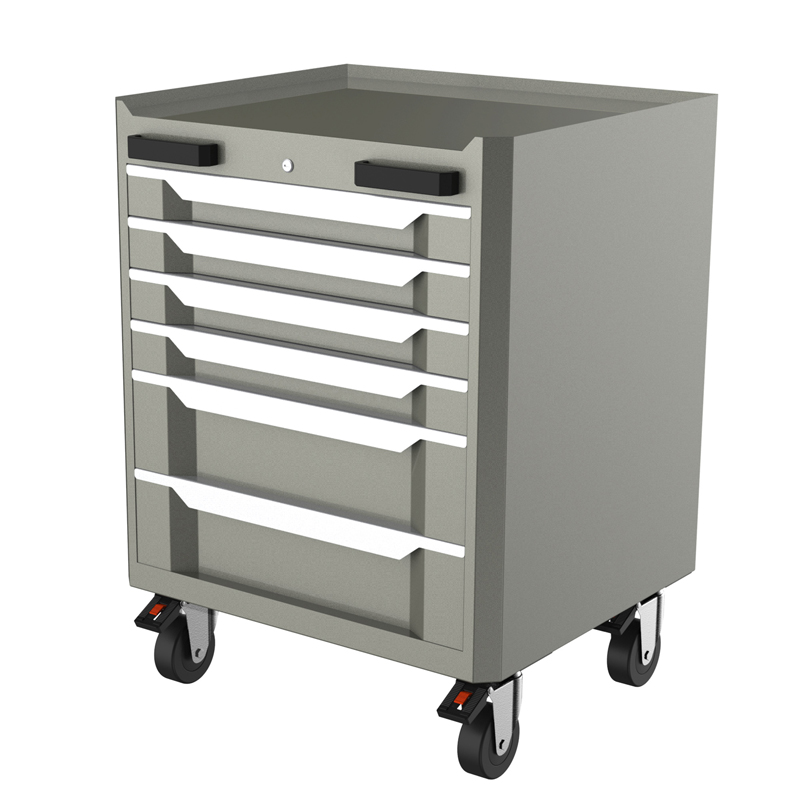

WT01Y3011 6-drawer cabinet
1、size::600x530x750mm
2、Drawer size：4-500*398*74mm,2-500-398*125mm
3、Drawer load：35-45KG
4、0.8mm industrial cold rolled steel
5、Black & red grain powder coating finish
6、6pcs of heavy duty ball bearing drawers with auto return
7、Central locking system with cylinder lock 2PCS key
8、4pcs of adjustable feet
9、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

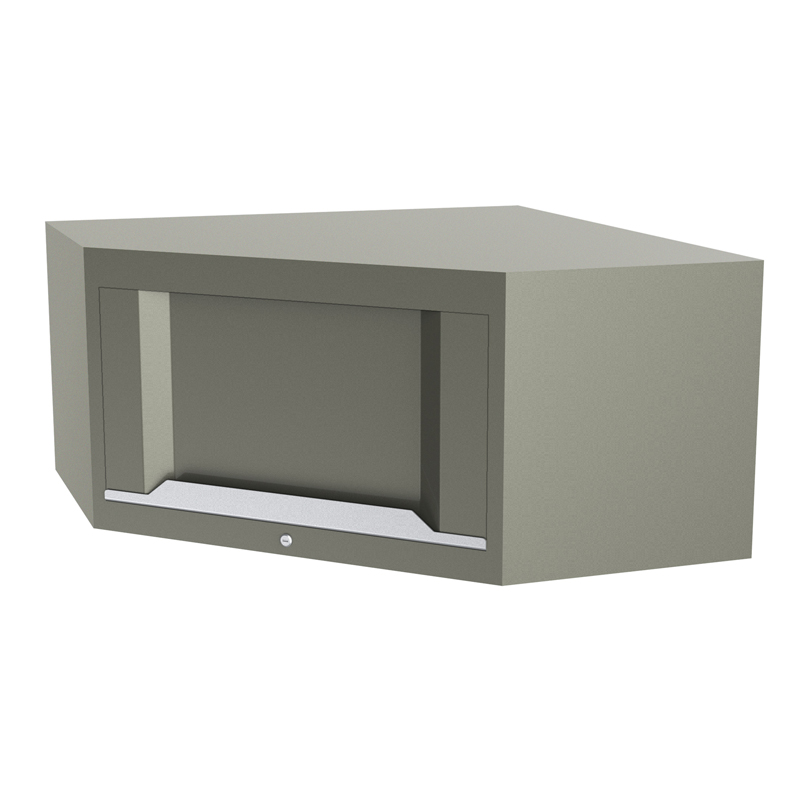

WT01Y3012 Corner wall cabinet
1、size:747*747*372mm
2、0.8mm industrial cold rolled steel
3、Black & red grain powder coating finish
3、2pcs of gas struts
4、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

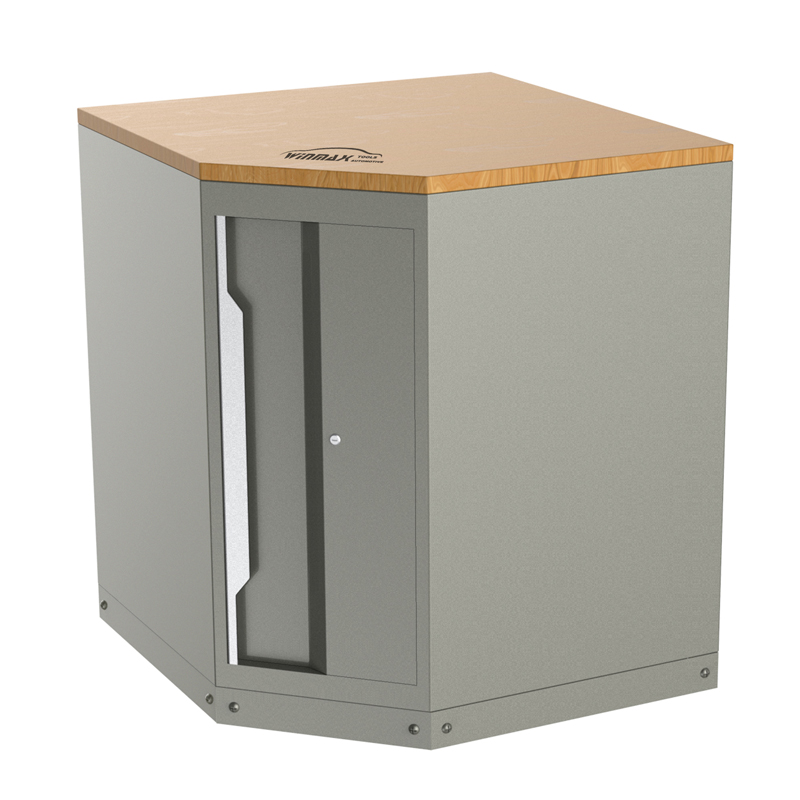

WT01Y3013 Corner bottom cabinet
1、size:747*747*776/836mm
2、 0.8mm industrial cold rolled steel
3、 1pcs storage partition board
4、 Black & red grain powder coating finish
5、5pcs of adjustable feet，2pcs key
6、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

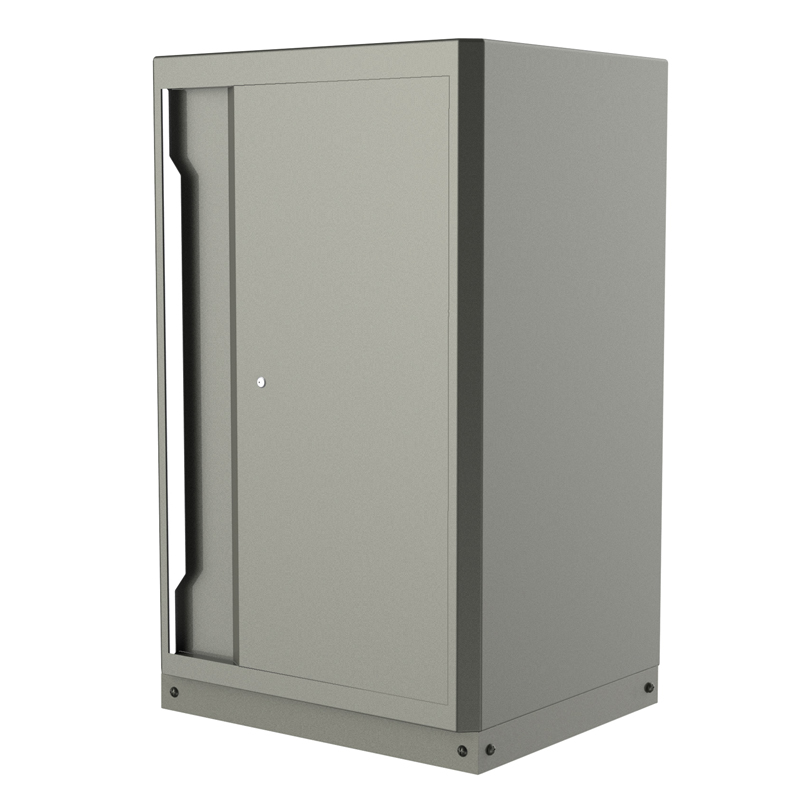

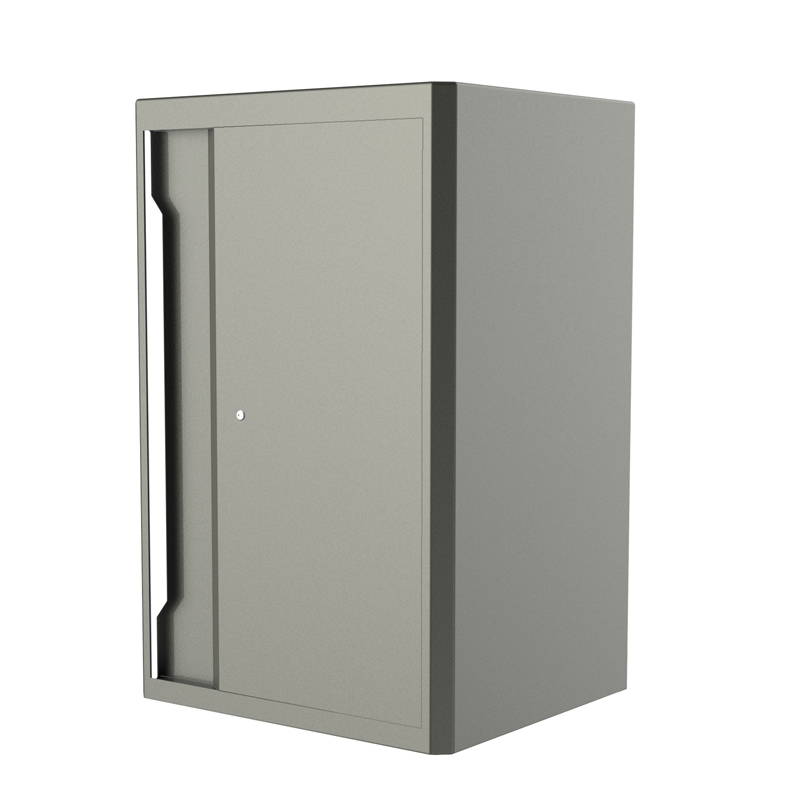

WT01Y3014 1 door standing cabinet
1、size：618x600x958mm
2、 0.8mm industrial cold rolled steel
3、 Black & red grain powder coating finish
4、 2pcs of shelves in the door，2pcs key
5、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

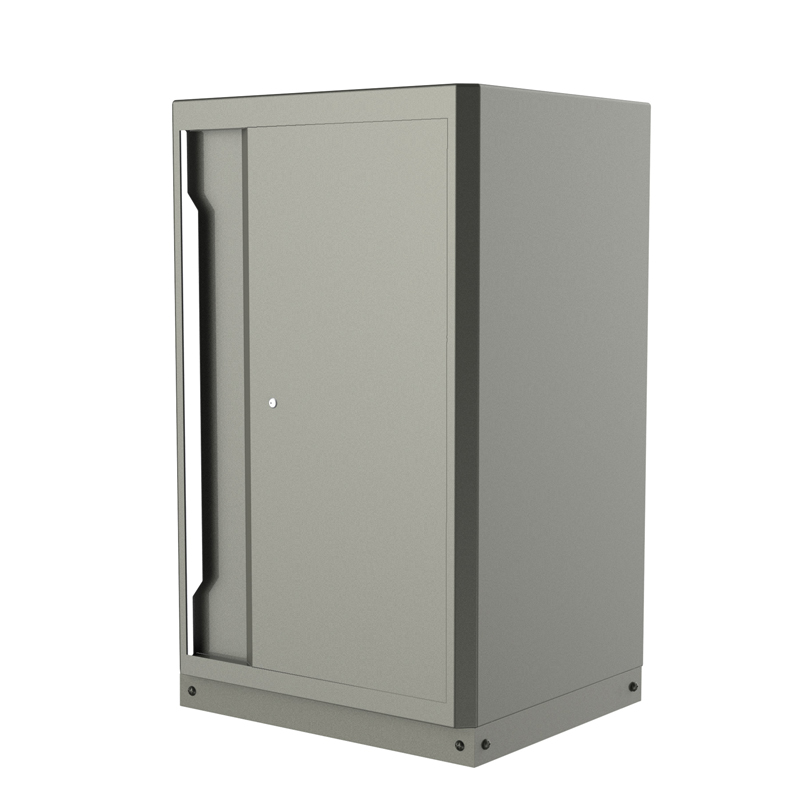

WT01Y3015 1 door standing cabinet
1、size：618x600x958/1018mm
2、 0.8mm industrial cold rolled steel
3、Black & red grain powder coating finish
4、2pcs of shelves in the door
5、4pcs of adjustable feet
6、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard
WT01Y3046 1 door standing cabinet
WT01Y3046 1 door standing cabinet
1、size：618x600x1180/1240mm
2、 0.8mm industrial cold rolled steel
3、Black & red grain powder coating finish
4、2pcs of shelves in the door
5、4pcs of adjustable feet
6、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

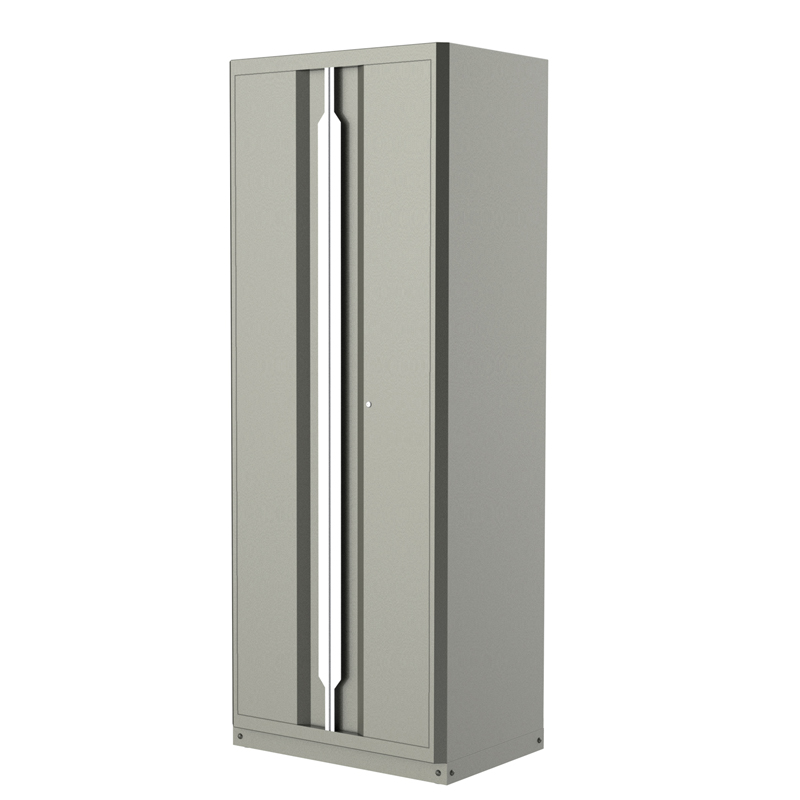

WT01Y3016 2 door standing cabinet
1、size：755x600x1916/1976mm
2、 0.8mm industrial cold rolled steel
3、Black & red grain powder coating finish
4、4pcs of shelves in the door
5、4pcs of adjustable feet
6、Packing: 5ply brown carton+PE bag+Foam+honeycomb cardboard

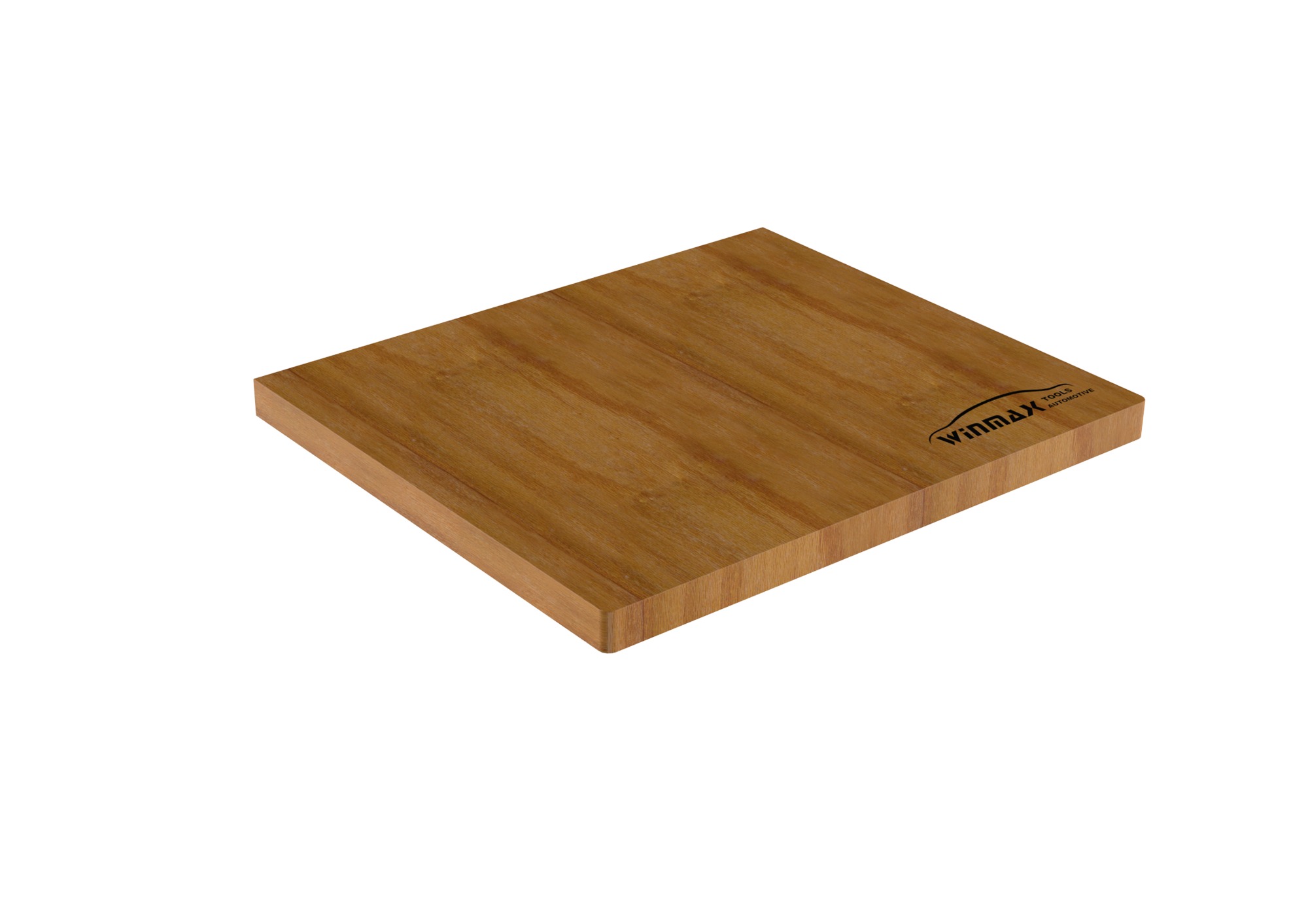

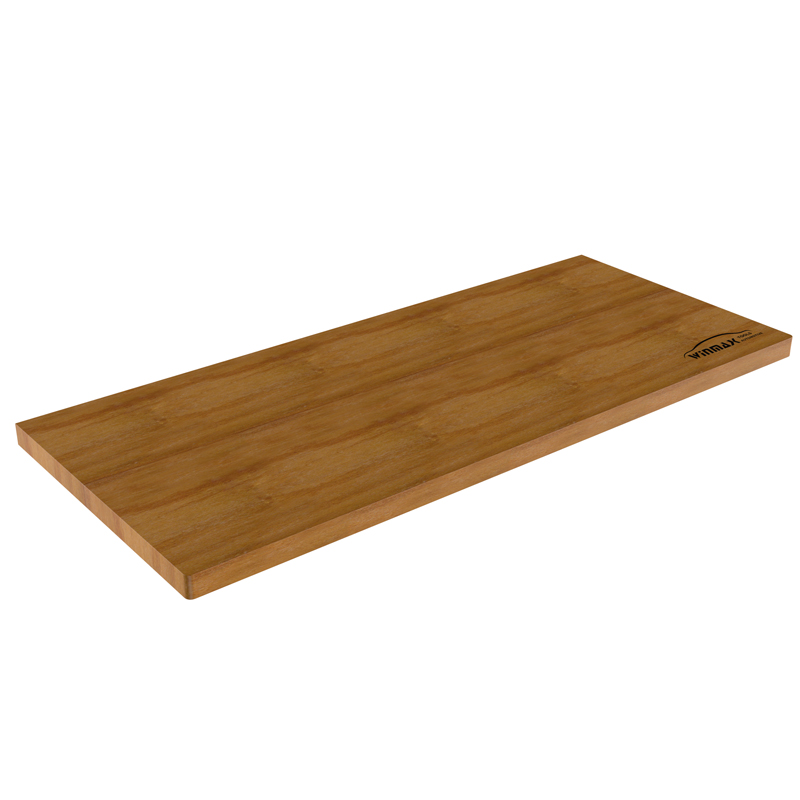

WT01Y3017 Rubber wood board
1、size:618*530*38mm
2、Packing: 5ply brown carton
WT01Y3018 Rubber wood board
1、size:1236*530*38mm
2、Packing: 5ply brown carton
WT01Y3019 Rubber wood board
WT01Y3019 Rubber wood board
1、size:1854*530*38mm
2、Packing: 5ply brown carton

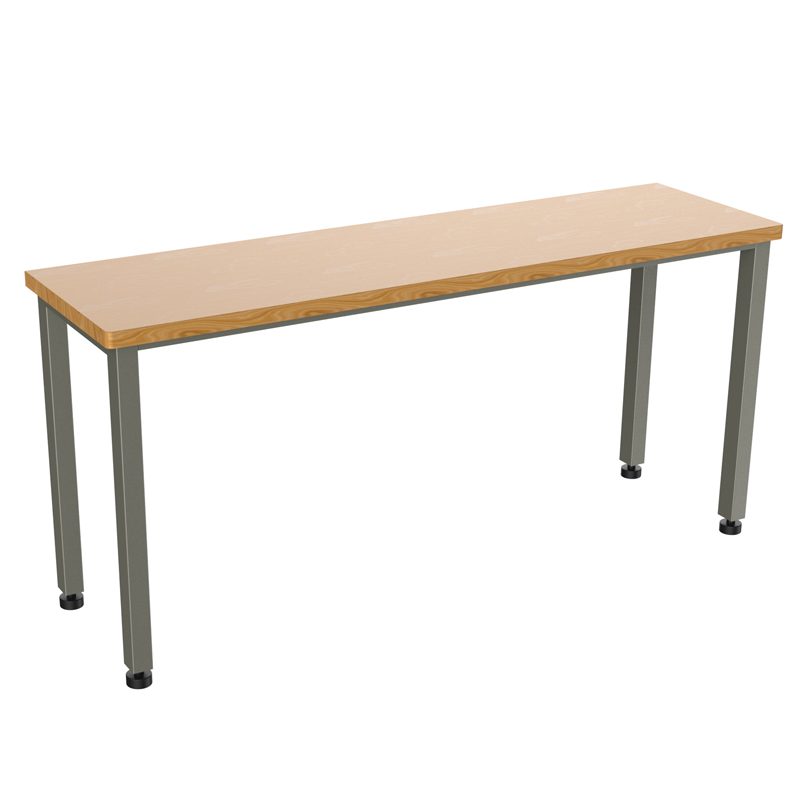

WT01Y3023 Working table
WT01Y3023 Working table
1、size:1236*530*836mm
2、2.0mm industrial cold rolled steel
3、Black grain powder coating finish
4、Packing: 5ply brown carton+Foam board

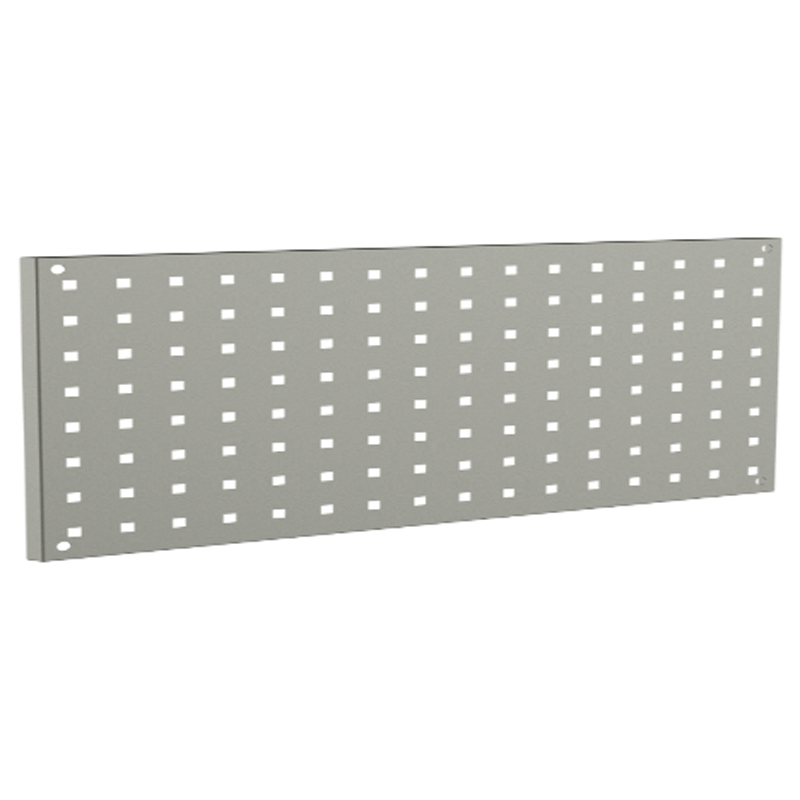

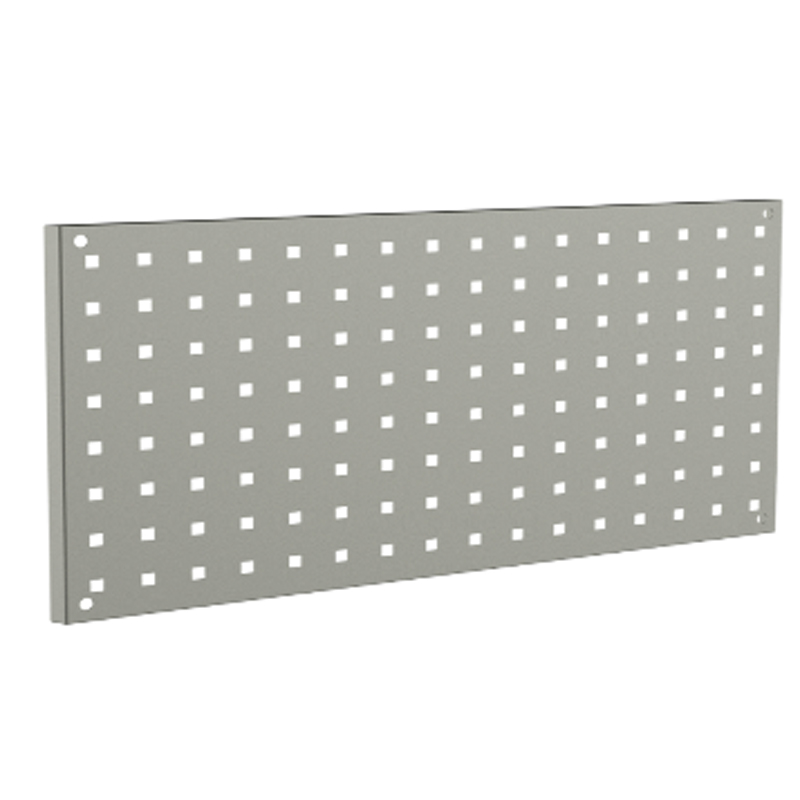

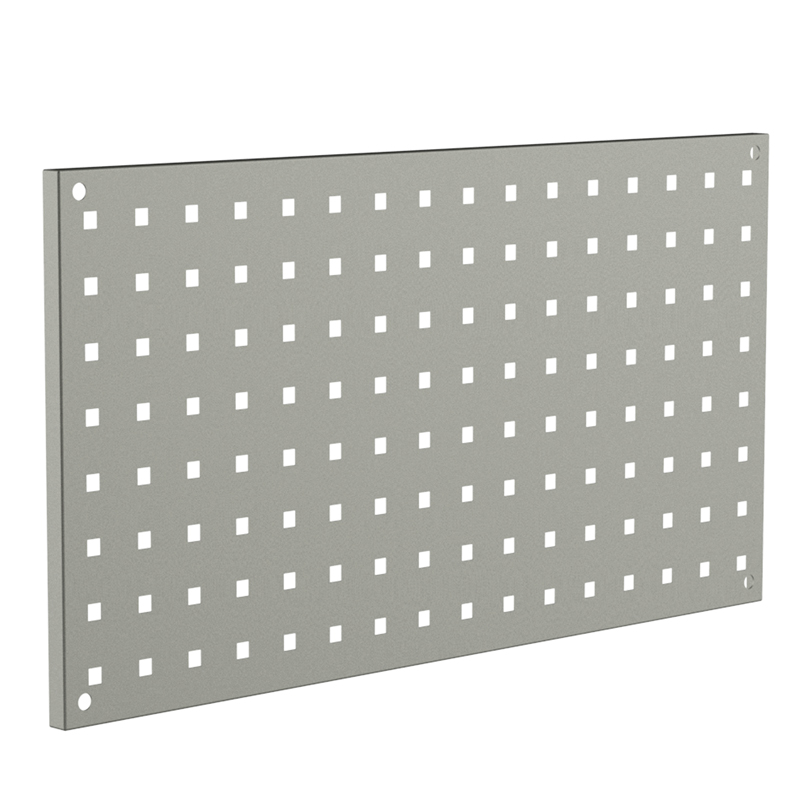

WT01Y3020 Perforatedpenel
WT01Y3020 Perforatedpenel
1、size:618*324*26mm
2、Square hole：10*10mm with 38mm step
3、panel:0.8mm
4、Black grain powder coating finish
5、Packing: 5ply brown carton+Foam board
WT01Y3021 Hanging plate of corner cabinet
WT01Y3021 Hanging plate of corner cabinet
1、size:747*324*26mm，747*405*26mm,721*324*26mm,721*405*26mm
2、Square hole：10*10mm with 38mm step
3、panel:0.8mm
4、Black grain powder coating finish
5、Packing: 5ply brown carton+Foam board
WT01Y3022 Corner back panel
WT01Y3022 Corner back panel
1、size:1854*324*26mm
2、Square hole：10*10mm with 38mm step
2、panel:0.8mm
3、Black grain powder coating finish
4、Packing: 5ply brown carton+Foam board

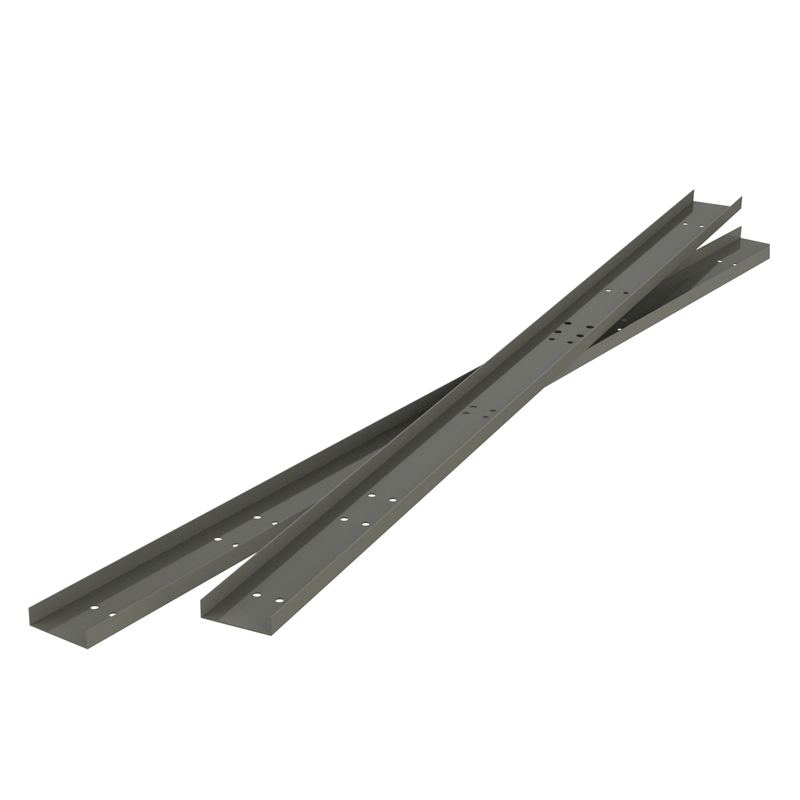

WT01Y3024 Fixed bar
WT01Y3024 Fixed bar
1、size:：1916*60*30mm
2、1.5mm industrial cold rolled steel
3、Black grain powder coating finish
4、Packing: 5ply brown carton+paper corners
WT01Y3025 Gas pipe connector
WT01Y3025 Gas pipe connector
1、size:618*80*26mm
2、4pcs Gas pipe connector
3、0.8mm industrial cold rolled steel
4、Black grain powder coating finish
5、Packing: 5ply brown carton+paper corners
WT01Y3026 Power supply socket
WT01Y3026 Power supply socket
1、size:618*80*26mm
2、6pcs Power supply socket
3、0.8mm industrial cold rolled steel
4、Black grain powder coating finish
5、Packing: 5ply brown carton+paper corners

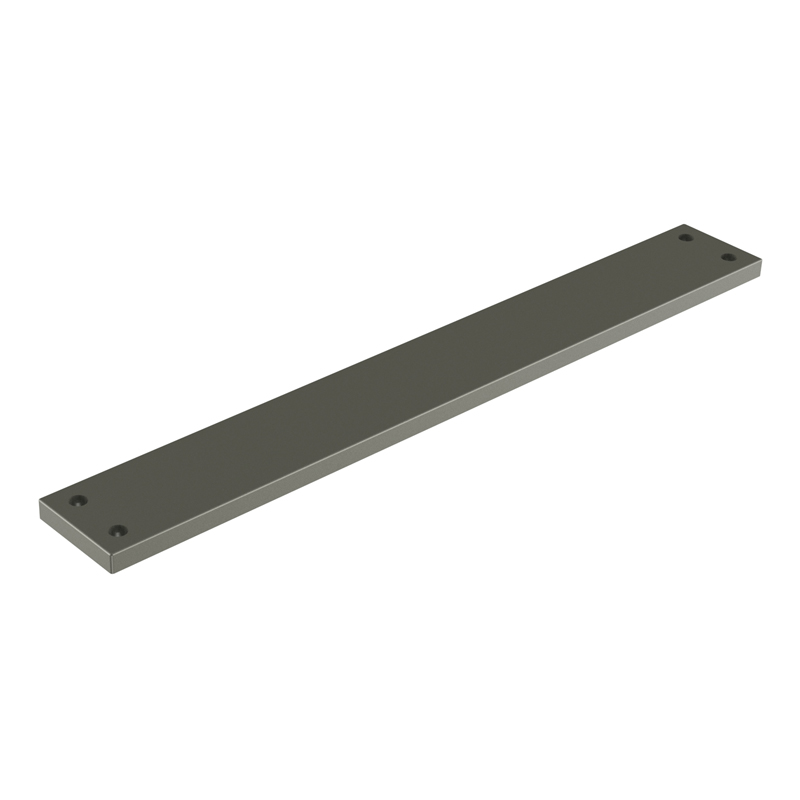

WT01Y3035 Backplane
WT01Y3035 Backplane
1、size:618*80*26mm
2、0.8mm industrial cold rolled steel
3、Black grain powder coating finish
4、Packing: 5ply brown carton+paper corners
WT01Y3052 LED light NO.1
WT01Y3052 LED light NO.1
1PCS 54CM
LED light NO.1
with magnetic
connector to the adaptor
SMD2835
DC12V
HAVE CE AND ROHS APPROVE
WT01Y3053 LED light NO.2
WT01Y3053 LED light NO.2
1PCS 61CM
LED light NO.2
connect to the NO.1 LED light
with magnetic
connector to the adaptor
SMD2835
DC12V
HAVE CE AND ROHS APPROVE
WT01Y3055 Stainless steel countertop panel
WT01Y3055 Stainless steel countertop panel
1、size:618*530*38mm
2、Packing: 5ply brown carton
WT01Y3056 Stainless steel countertop panel
WT01Y3056 Stainless steel countertop panel
1、size:1236*530*38mm
2、Packing: 5ply brown carton
WT01Y3057 Stainless steel countertop panel
WT01Y3057 Stainless steel countertop panel
1、size:1854*530*38mm
2、Packing: 5ply brown carton
WT01Y3054 Adaptor
WT01Y3054 Adaptor
1PCS
Adaptor
input: 90-264V 50HZ
output: DC12V 4A 48W
rating current: 4A
Wire length:2M
With switch
HAVE CE AND ROHS APPROVE
